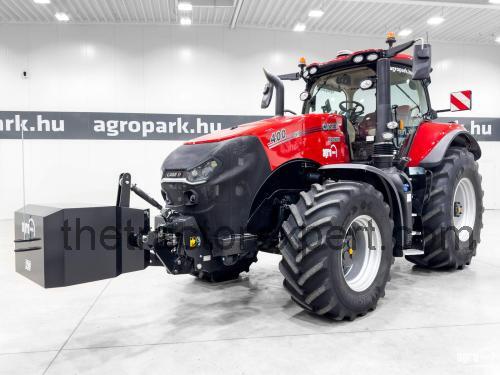

Case IH Magnum Specs, Reviews, and Common Problems
| Engine Specs | |
|---|---|
| Type: | diesel |
| Capacity: | 6.7 liters |
| Horsepower: | 180-380 hp |
| Torque: | 740-1445 nm |
| User Manual | Case IH Magnum User Manual |
| Number of cylinders: | 6 |
| Cooling system type: | liquid-cooled |
| Emission standards compliance: | tier 4 |
| Turbocharged or naturally aspirated: | turbocharged |
| Engine rpm range: | 2200-2400 rpm |
| Dimensions | |
| Length: | 5570-6480 mm |
| Width: | 2750-3000 mm |
| Height: | 3410-3610 mm |
| Weight: | 9072-10886 kg |
| Wheelbase: | 2980-3350 mm |
| Ground clearance: | 460-610 mm |
| Turning radius: | 5.8-6.7 m |
| Performance | |
| Top speed: | 40 km/h |
| Parts & Accessories | Case IH Magnum Parts & Accessories |
| Fuel consumption: | 15-20 liters per hour |
| Fuel tank capacity: | 568 liters |
| Maximum towing capacity: | 9072 kg |
| Maximum drawbar pull: | 18.4 kn |
| Transmission type: | power shift |
| Number of forward and reverse gears: | 18f/4r |
| Differential lock: | automatic |
| Axle configuration: | 4wd |
| Features | |
| Cabin features: | air conditioning, adjustable seats, suspension, infotainment system |
| Transmission features: | power-shift transmission, creep gears |
| Tires - type: | agricultural |
| Tires - size: | 480/80r46 |
| Tires - configuration: | dual rear |
| PTO details - standard pto: | 540/1000 rpm |
| Tires & Wheels | Case IH Magnum Tires & Wheels |
| PTO details - speed options: | 540/1000 rpm |
| Lighting - led headlights: | true |
| Lighting - work lights: | true |
| Lighting - beacon light: | true |
| Safety features: | rollover protection, seat belts, emergency stop, fire extinguisher mount |
| Steering system: | power-assisted |
| Climate control: | heating, ventilation |
| Electrical Specs | |
| Battery type and capacity: | 12v / 925 cca |
| Alternator type and power output: | 12v / 150a |
| Electrical system type: | 12v |
| Wiring protection features: | fuses, circuit breakers |
| Starter system: | electric start |
| On-board computer or diagnostic systems: | can-bus |
| Hydraulic Specs | |
| Filters & Maintenance | Case IH Magnum Filters & Maintenance |
| Hydraulic system type: | closed center |
| Pump flow rate: | 163 l/min |
| Maximum hydraulic pressure: | 206 bar |
| Lift capacity: | 9072 kg |
| Control type: | electronic |
| Hydraulic remotes - number: | 4 |
| Hydraulic remotes - type of remote valves: | electronic |
| Three-point hitch: | category 4 |
| Environmental and Durability | |
| Operating temperature range: | -25 to 45 degrees celsius |
| Noise level: | 75 db |
| Water fording depth: | 0.6 m |
| Corrosion resistance: | saltwater-resistant |
| Attachments and Compatibility | |
| Front loader compatibility - lift height: | 4.3 m |
| Front loader compatibility - capacity: | 2722 kg |
| Backhoe compatibility - digging depth: | 4.5 m |
| Backhoe compatibility - reach: | 5.9 m |
| Compatibility with implements: | plows, harrows, mowers |
| Optional equipment: | cab kits, extra weights, tracks |
| Connectivity | |
| GPS and navigation system - guidance: | true |
| GPS and navigation system - auto-steering: | true |
| Remote monitoring - telematics: | true |
| Remote monitoring - app integration: | true |
| Bluetooth and wi-fi connectivity: | true |
| Compatibility with precision agriculture tools: | true |
| Price | |
| MSRP: | usd 250,000 |
| Current market price: | usd 200,000 |
| Financing options: | lease, loan terms |
| Warranty | |
| Duration of warranty: | 3 years / 3000 hours |
| Coverage details: | drivetrain, hydraulics, electronics |
| Extended warranty options: | true |
| Maintenance | |
| Service intervals: | engine oil - every 200 hours, filters - every 400 hours |
| Parts availability: | global |
| Dealer support and service network: | worldwide |
| Other Relevant Details | |
| Manufacturer’s recommended uses: | plowing, tilling, hauling |
| Year of manufacture or model year: | 2021 |
| Country of origin or manufacturing facilities: | usa |
| Market availability: | worldwide |
Pros and cons of Case IH Magnum - What You Need to Know
Case IH Magnum User Manual
Case IH Magnum Parts & Accessories
| Pros | Cons |
|---|---|
| Powerful engine | Expensive compared to some competitors |
| Comfortable cab | Requires skilled operator to use all features |
| Advanced technology | Can be complex and overwhelming for some users |
| Efficient fuel consumption | May not be necessary for smaller farms or operations |
| Durable and reliable | Spare parts can be expensive and difficult to find |
Reviews of Case IH Magnum by Owners - Real User Experiences
| Name | Review |
|---|---|
| John | The Case IH Magnum tractor is a beast in the field. It has great power and traction. I have used it for plowing and tilling, and it has never let me down. The cab is comfortable and has all the necessary features for a long day in the field. I highly recommend this tractor. |
| Jane | I purchased the Case IH Magnum tractor for my farm a few months ago, and I am extremely happy with it. It has excellent fuel efficiency and can handle any task I throw at it. The cab is spacious and well-designed, and the controls are easy to use. I would recommend this tractor to any farmer looking for a reliable and efficient machine. |
| Mike | The Case IH Magnum tractor is a powerful and versatile machine. I have used it for planting, harvesting, and hauling, and it has performed flawlessly every time. The cab is comfortable and well-equipped, and the visibility is excellent. The only downside is the price, but it is worth the investment for such a high-quality tractor. |
| Sara | The Case IH Magnum tractor is a great investment for any farmer. It is easy to operate and maintain, and it has all the necessary features for a productive day in the field. The cab is comfortable and has great visibility, which makes it easy to maneuver. Overall, I am very pleased with my purchase and would recommend this tractor to anyone looking for a reliable machine. |
| Tom | I have been using the Case IH Magnum tractor for several years now, and it has never let me down. It is a powerful machine that can handle any job, and it has excellent fuel efficiency. The cab is well-designed and comfortable, and the controls are easy to use. I highly recommend this tractor to any farmer looking for a dependable and efficient machine. |
Common Issues and Problems with Case IH Magnum
Case IH Magnum Filters & Maintenance
Case IH Magnum Tires & Wheels
- Transmission issues, such as slipping, jerking, or failing to engage properly.
- Hydraulic system problems, including leaks, slow operation, or failure to lift or lower attachments.
- Electrical issues, such as dead batteries, faulty wiring, or malfunctioning sensors.
- Engine troubles, including poor performance, overheating, or excessive smoke or noise.
- Noise and vibration problems, which can be caused by worn-out or damaged components.
- Tire and wheel issues, such as flat tires, damaged rims, or improper alignment.
- Steering and brake problems, including difficulty turning, excessive play, or insufficient stopping power.
- Cab and comfort issues, such as poor air conditioning, uncomfortable seats, or inadequate visibility.
Common Questions About Case IH Magnum
-
What is the engine type of Case IH Magnum tractor?
The engine type of Case IH Magnum tractor is diesel.
-
What is the fuel consumption of Case IH Magnum tractor?
The fuel consumption of Case IH Magnum tractor is 15-20 liters per hour.
-
What is the lift capacity of hydraulics system in Case IH Magnum tractor?
The lift capacity of hydraulics system in Case IH Magnum tractor is 9072 kg.
-
Does Case IH Magnum tractor have Bluetooth and Wi-Fi connectivity?
Yes, Case IH Magnum tractor has Bluetooth and Wi-Fi connectivity.
-
What is the warranty duration of Case IH Magnum tractor?
The warranty duration of Case IH Magnum tractor is 3 years / 3000 hours.
-
What is the MSRP of Case IH Magnum tractor?
The MSRP of Case IH Magnum tractor is USD 250,000.
-
What is the maximum towing capacity of Case IH Magnum tractor?
The maximum towing capacity of Case IH Magnum tractor is 9072 kg.
-
What is the country of origin or manufacturing facilities of Case IH Magnum tractor?
The country of origin or manufacturing facilities of Case IH Magnum tractor is USA.
