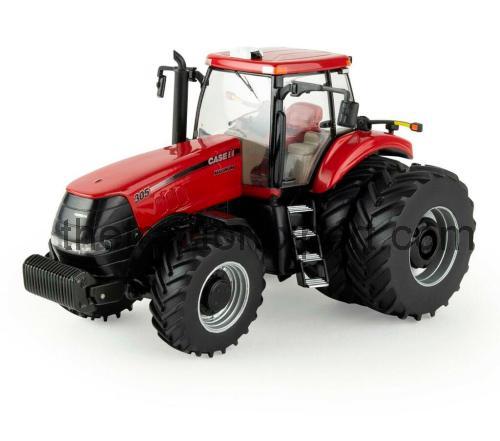

Case IH Magnum 305 Specs, Reviews, and Common Problems
| Engine Specs | |
|---|---|
| Type: | diesel |
| Capacity: | 8.7l |
| Horsepower: | 311 hp |
| Torque: | 1,420 lb-ft |
| User Manual | Case IH Magnum 305 User Manual |
| Number of cylinders: | 6 |
| Cooling system type: | liquid-cooled |
| Emission standards compliance: | tier 4 final / stage iv |
| Turbocharged or naturally aspirated: | turbocharged |
| Engine RPM range: | 2200 rpm (rated speed) / 800 rpm (idle speed) |
| Dimensions | |
| Length: | 5,682 mm / 223.7 in |
| Width: | 2,844 mm / 112.0 in |
| Height: | 3,067 mm / 120.7 in |
| Weight: | 11,200 kg / 24,691 lbs |
| Wheelbase: | 3,379 mm / 133.0 in |
| Ground clearance: | 510 mm / 20.1 in |
| Turning radius: | 6.1 m / 20.0 ft |
| Performance | |
| Top speed: | 40 km/h / 25 mph |
| Parts & Accessories | Case IH Magnum 305 Parts & Accessories |
| Fuel consumption: | 24.2 l/hour / 6.4 gallons/hour |
| Fuel tank capacity: | 568 l / 150 gallons |
| Maximum towing capacity: | 14,600 kg / 32,187 lbs |
| Maximum drawbar pull: | 14.4 kn / 3,239 lbs |
| Transmission type: | powershift |
| Number of forward and reverse gears: | 18 forward / 4 reverse |
| Differential lock: | automatic |
| Axle configuration: | 4wd |
| Features | |
| Cabin features: | air conditioning, adjustable seats, suspension, infotainment system |
| Transmission features: | 18 forward / 4 reverse gears, power-shift transmission, creep gears |
| Tires: | 520/85r46 rear duals, 480/70r34 front singles |
| PTO details: | standard 540/1000 rpm |
| Lighting: | led headlights, work lights, beacon light |
| Safety features: | rollover protection, seat belts, emergency stop, fire extinguisher mount |
| Tires & Wheels | Case IH Magnum 305 Tires & Wheels |
| Steering system: | power-assisted |
| Climate control: | heating, ventilation |
| Electrical Specs | |
| Battery type and capacity: | 12v / 200 ah |
| Alternator type and power output: | 12v / 200 a |
| Electrical system type: | 12v, alternator-regulated |
| Wiring protection features: | fuses / circuit breakers |
| Starter system: | electric start |
| On-board computer or diagnostic systems: | can-bus / fault codes |
| Hydraulic Specs | |
| Hydraulic system type: | closed center |
| Pump flow rate: | 159 l/min / 42 gallons/min |
| Maximum hydraulic pressure: | 290 bar / 4,205 psi |
| Lift capacity: | 6,804 kg / 15,000 lbs |
| Control type: | electronic |
| Filters & Maintenance | Case IH Magnum 305 Filters & Maintenance |
| Hydraulic remotes: | 4 electronic remote valves |
| Three-point hitch: | category 3 |
| Environmental and Durability | |
| Operating temperature range: | -20 to 40 degrees celsius / -4 to 104 degrees fahrenheit |
| Noise level: | 76 db |
| Water fording depth: | 1 m / 3.3 ft |
| Corrosion resistance: | standard |
| Attachments and Compatibility | |
| Front loader compatibility: | 5.03 m / 16.5 ft lift height, 3,720 kg / 8,200 lbs capacity |
| Backhoe compatibility: | n/a |
| Compatibility with implements: | plows, harrows, mowers |
| Optional equipment: | cab kits, extra weights, tracks |
| Connectivity | |
| GPS and navigation system: | guidance / auto-steering |
| Remote monitoring: | telematics / app integration |
| Bluetooth and Wi-Fi connectivity: | n/a |
| Compatibility with precision agriculture tools: | yes |
| Price | |
| MSRP: | $278,560 |
| Current market price: | $250,000 |
| Financing options: | lease / loan terms |
| Warranty | |
| Duration of warranty: | 3 years / 3,000 hours |
| Coverage details: | drivetrain, hydraulics, electronics |
| Extended warranty options: | available |
| Maintenance | |
| Service intervals: | 250 hours for engine oil / filters |
| Parts availability: | global |
| Dealer support and service network: | extensive |
| Other Relevant Details | |
| Manufacturer's recommended uses: | plowing, tilling, hauling |
| Year of manufacture or model year: | 2019 |
| Country of origin or manufacturing facilities: | usa |
| Market availability: | available in North America, Europe, and other regions |
Pros and cons of Case IH Magnum 305 - What You Need to Know
Case IH Magnum 305 User Manual
Case IH Magnum 305 Parts & Accessories
| Pros | Cons |
|---|---|
| Powerful engine with 305 horsepower | Expensive price tag |
| Efficient fuel consumption | Heavy weight can cause soil compaction |
| Comfortable and spacious cab with ergonomic controls | Difficult to maneuver in tight spaces |
| High capacity hydraulic system | Requires regular maintenance |
| Advanced precision farming technology | May not be suitable for small farms |
Reviews of Case IH Magnum 305 by Owners - Real User Experiences
| Name | Review |
|---|---|
| John | The Case IH Magnum 305 tractor is a heavy-duty workhorse that can handle any job on the farm. It's powerful, efficient, and reliable. I've been using it for plowing, planting, and harvesting, and it never lets me down. The cab is comfortable and spacious, and the controls are easy to use. Overall, I'm very satisfied with this tractor. |
| Jane | I recently purchased the Case IH Magnum 305 tractor, and I'm impressed with its performance. It's a versatile machine that can handle a variety of tasks, from mowing to hauling. The engine is powerful, and the transmission is smooth. The cab is well-designed, with plenty of storage and comfortable seating. I would definitely recommend this tractor to anyone looking for a reliable and efficient workhorse. |
| Mike | The Case IH Magnum 305 tractor is an excellent choice for farmers who need a high-performance machine for heavy-duty work. It's built to last, with a strong frame and durable components. The engine provides plenty of power, and the transmission is responsive and easy to use. The cab is comfortable, with good visibility and ergonomic controls. Overall, I'm very happy with this tractor. |
| Sarah | I've been using the Case IH Magnum 305 tractor for several months now, and I'm impressed with its performance. It's a reliable and efficient machine that can handle a variety of tasks, from tilling to baling. The cab is spacious and comfortable, with good visibility and easy-to-use controls. The engine is powerful, and the transmission is smooth. I would recommend this tractor to anyone in need of a high-performance workhorse. |
| Tom | The Case IH Magnum 305 tractor is a great investment for farmers who need a powerful and reliable machine for their operations. It's easy to operate, with intuitive controls and a comfortable cab. The engine is powerful and efficient, and the transmission is responsive and smooth. I've used it for planting, harvesting, and hauling, and it's performed well every time. I would definitely recommend this tractor to other farmers. |
Common Issues and Problems with Case IH Magnum 305
Case IH Magnum 305 Filters & Maintenance
Case IH Magnum 305 Tires & Wheels
- Engine overheating
- Transmission slipping or failing to shift properly
- Hydraulic system leaks or malfunctions
- Electrical issues, such as dead batteries or faulty wiring
- Brake problems, including sticking or failing to engage
- Steering difficulties, such as excessive play or lack of responsiveness
- Noisy or vibrating drivetrain components
- Poor fuel efficiency or power output
Common Questions About Case IH Magnum 305
-
What is the horsepower of the Case IH Magnum 305 tractor?
The Case IH Magnum 305 tractor has a horsepower of 311 hp.
-
What is the fuel consumption of the Case IH Magnum 305 tractor?
The fuel consumption of the Case IH Magnum 305 tractor is 24.2 liters per hour or 6.4 gallons per hour.
-
What is the maximum towing capacity of the Case IH Magnum 305 tractor?
The maximum towing capacity of the Case IH Magnum 305 tractor is 14,600 kg or 32,187 lbs.
-
Does the Case IH Magnum 305 tractor come with a GPS and navigation system?
Yes, the Case IH Magnum 305 tractor comes with a guidance and auto-steering system.
-
What is the warranty period for the Case IH Magnum 305 tractor?
The warranty period for the Case IH Magnum 305 tractor is 3 years or 3,000 hours.
-
What is the hydraulic pump flow rate of the Case IH Magnum 305 tractor?
The hydraulic pump flow rate of the Case IH Magnum 305 tractor is 159 liters per minute or 42 gallons per minute.
-
What is the price of the Case IH Magnum 305 tractor?
The MSRP of the Case IH Magnum 305 tractor is $278,560, while the current market price is $250,000.
-
What is the ground clearance of the Case IH Magnum 305 tractor?
The ground clearance of the Case IH Magnum 305 tractor is 510 mm or 20.1 in.
