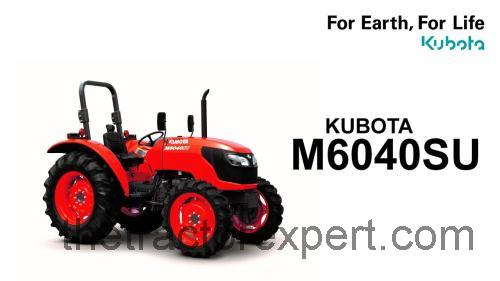

Kubota M6040SU Specs, Reviews, and Common Problems
| Engine Specs | |
|---|---|
| Type: | diesel |
| Capacity: | 3.3l |
| Horsepower: | 63 hp |
| Torque: | 187 lb-ft |
| User Manual | Kubota M6040SU User Manual |
| Number of cylinders: | 4 |
| Cooling system type: | liquid-cooled |
| Emission standards compliance: | tier 4 |
| Turbocharged or naturally aspirated: | turbocharged |
| Engine rpm range: |
Rated speed: 2600 rpm Idle speed: 850 rpm |
| Dimensions | |
| Length: | 3385 mm |
| Width: | 1760 mm |
| Height: | 2550 mm |
| Weight: | 2000 kg |
| Wheelbase: | 1930 mm |
| Ground clearance: | 360 mm |
| Turning radius: | 3.3 m |
| Performance | |
| Top speed: | 30 km/h |
| Parts & Accessories | Kubota M6040SU Parts & Accessories |
| Fuel consumption: | 8.9 l/hr |
| Fuel tank capacity: | 70 l |
| Maximum towing capacity: | 2500 kg |
| Maximum drawbar pull: | 19.6 kn |
| Transmission type: | manual |
| Number of forward and reverse gears: | 8 |
| Differential lock: | manual |
| Axle configuration: | 4wd |
| Features | |
| Cabin features: |
Air conditioning: false Adjustable seats: true Suspension: false Infotainment system: false |
| Transmission features: |
Number of gears: 8 Power-shift transmission: false Creep gears: true |
| Tires: |
Tire type: radial Size: 9.5-24 (front), 16.9-30 (rear) Configuration: 4wd |
| PTO details: |
Standard PTO: 540 rpm Speed options: 540 rpm, 1000 rpm |
| Lighting: |
LED headlights: false Work lights: true Beacon light: false |
| Safety features: |
Rollover protection: true Seat belts: true Emergency stop: true Fire extinguisher mount: true |
| Tires & Wheels | Kubota M6040SU Tires & Wheels |
| Steering system: |
Power-assisted: false Hydrostatic: true |
| Climate control: |
Heating: false Ventilation: false |
| Electrical Specs | |
| Battery type and capacity: | 12v / 80ah |
| Alternator type and power output: | 12v / 60a |
| Electrical system type: | 12v |
| Wiring protection features: | fuses |
| Starter system: | electric start |
| On-board computer or diagnostic systems: | fault codes |
| Hydraulic Specs | |
| Hydraulic system type: | open center |
| Pump flow rate: | 42 l/min |
| Maximum hydraulic pressure: | 2275 psi |
| Lift capacity: | 2400 kg |
| Control type: | manual |
| Filters & Maintenance | Kubota M6040SU Filters & Maintenance |
| Hydraulic remotes: | 2 rear |
| Three-point hitch: | category 2 |
| Environmental and Durability | |
| Operating temperature range: | -10 to 45°c |
| Noise level: | 94 db |
| Water fording depth: | 0.44 m |
| Corrosion resistance: | standard |
| Attachments and Compatibility | |
| Front loader compatibility: |
Lift height: 3.18 m Capacity: 1120 kg |
| Backhoe compatibility: |
Digging depth: 3.68 m Reach: 4.76 m |
| Compatibility with implements: |
Plows: true Harrows: true Mowers: true |
| Optional equipment: |
Cab kits: true Extra weights: true Tracks: false |
| Connectivity | |
| GPS and navigation system: | false |
| Remote monitoring: | false |
| Bluetooth and Wi-Fi connectivity: | false |
| Compatibility with precision agriculture tools: | false |
| Price | |
| MSRP: | $37,000 |
| Current market price: | $35,000 |
| Financing options: |
Lease: true Loan terms: 3 years |
| Warranty | |
| Duration of warranty: | 2 years |
| Coverage details: |
Drivetrain: true Hydraulics: true Electronics: false |
| Extended warranty options: | true |
| Maintenance | |
| Service intervals: |
Engine oil: 200 hours Filters: 200 hours |
| Parts availability: | global |
| Dealer support and service network: | wide |
| Other Relevant Details | |
| Manufacturer’s recommended uses: |
Plowing: true Tilling: true Hauling: true |
| Year of manufacture or model year: | 2019 |
| Country of origin or manufacturing facilities: | japan |
| Market availability: | global |
Pros and cons of Kubota M6040SU - What You Need to Know
Kubota M6040SU User Manual
Kubota M6040SU Parts & Accessories
| Pros | Cons |
|---|---|
| Powerful engine | Expensive compared to some competitors |
| Easy to operate | Not suitable for heavy-duty tasks |
| Comfortable cabin | Limited visibility from the driver's seat |
| Good fuel economy | May require frequent maintenance |
| Long lifespan | May not be readily available in some regions |
Reviews of Kubota M6040SU by Owners - Real User Experiences
| Name | Review |
|---|---|
| John | The Kubota M6040SU tractor is a reliable and powerful machine. I've used it for plowing, planting, and mowing and it has never let me down. The controls are intuitive and easy to use, and the visibility from the cab is excellent. Highly recommended. |
| Sarah | I recently purchased the Kubota M6040SU tractor and I'm very happy with it. It's a versatile machine that can handle a variety of tasks, from hauling heavy loads to tilling the soil. The engine is powerful and efficient, and the cab is comfortable and spacious. Overall, a great tractor for any farmer or landowner. |
| David | The Kubota M6040SU tractor is a workhorse. I've used it for everything from clearing brush to digging post holes, and it has never let me down. The 4WD system provides excellent traction on uneven terrain, and the hydraulic system is strong and responsive. I would definitely recommend this tractor to anyone in need of a reliable and versatile machine. |
| Jane | I've been using the Kubota M6040SU tractor on my farm for several years now, and it has been a great investment. It's easy to operate and maintain, and has plenty of power to handle any job I throw at it. I particularly appreciate the smooth ride and low noise level in the cab. Overall, a great tractor that I would definitely recommend. |
| Tom | The Kubota M6040SU tractor is a reliable and efficient machine. I've used it for a variety of tasks on my farm, from mowing to baling, and it has always performed well. The cab is comfortable and well-designed, with plenty of storage space and good visibility. I would definitely recommend this tractor to anyone in need of a versatile and dependable machine. |
Common Issues and Problems with Kubota M6040SU
Kubota M6040SU Filters & Maintenance
Kubota M6040SU Tires & Wheels
- Overheating engine due to clogged air filters or malfunctioning cooling system.
- Difficulty in starting the engine caused by a weak battery or faulty starter motor.
- Loss of power or stalling due to dirty fuel injectors or a clogged fuel filter.
- Excessive vibration or shaking caused by worn-out tires or damaged drivetrain components.
- Transmission problems such as slipping gears, grinding noises or difficulty in shifting gears.
- Hydraulic system failure due to low fluid levels or damaged components.
- Electrical issues such as faulty wiring, blown fuses or malfunctioning switches.
- Poor performance or fuel efficiency caused by dirty air filters or worn-out engine components.
Common Questions About Kubota M6040SU
-
What is the fuel consumption of the Kubota M6040SU tractor?
The fuel consumption of the Kubota M6040SU tractor is 8.9 liters per hour.
-
Does the Kubota M6040SU tractor have air conditioning in the cabin?
No, the Kubota M6040SU tractor does not have air conditioning in the cabin.
-
How many hydraulic remotes does the Kubota M6040SU tractor have?
The Kubota M6040SU tractor has 2 rear hydraulic remotes.
-
What is the lift capacity of the Kubota M6040SU tractor?
The lift capacity of the Kubota M6040SU tractor is 2400 kg.
-
What is the MSRP of the Kubota M6040SU tractor?
The MSRP of the Kubota M6040SU tractor is $37,000.
-
What is the maximum towing capacity of the Kubota M6040SU tractor?
The maximum towing capacity of the Kubota M6040SU tractor is 2500 kg.
-
Does the Kubota M6040SU tractor have a power-assisted steering system?
No, the Kubota M6040SU tractor does not have a power-assisted steering system.
-
What is the warranty duration for the Kubota M6040SU tractor?
The warranty duration for the Kubota M6040SU tractor is 2 years.
