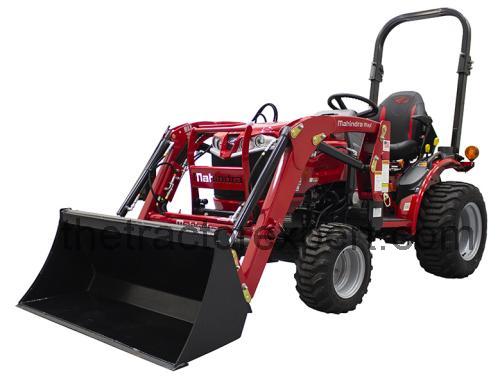

Mahindra Max 22 HST Specs, Reviews, and Common Problems
| Engine Specs | |
|---|---|
| Type: | diesel |
| Capacity: | 1.6l |
| Horsepower: | 22 hp |
| Torque: | 55 nm |
| User Manual | Mahindra Max 22 HST User Manual |
| Number of cylinders: | 3 |
| Cooling system type: | liquid-cooled |
| Emission standards compliance: | tier 4 |
| Turbocharged or naturally aspirated: | naturally aspirated |
| Engine rpm range: | 2400 rpm (rated speed) / 1200 rpm (idle speed) |
| Dimensions | |
| Length: | 2,610 mm / 102.8 in |
| Width: | 1,210 mm / 47.6 in |
| Height: | 1,900 mm / 74.8 in |
| Weight: | 650 kg / 1433 lbs |
| Wheelbase: | 1,510 mm / 59.4 in |
| Ground clearance: | 200 mm / 7.9 in |
| Turning radius: | 2.4 m / 7.9 ft |
| Performance | |
| Top speed: | 16.6 km/h / 10.3 mph |
| Parts & Accessories | Mahindra Max 22 HST Parts & Accessories |
| Fuel consumption: | 2.4 l/hour / 0.63 gallons/hour |
| Fuel tank capacity: | 27 l / 7.1 gallons |
| Maximum towing capacity: | 567 kg / 1250 lbs |
| Maximum drawbar pull: | 9.2 kn / 2065 lbs |
| Transmission type: | hydrostatic |
| Number of forward and reverse gears: | 2 range, infinite speeds |
| Differential lock: | manual |
| Axle configuration: | 4wd |
| Features | |
| Cabin features: | adjustable seats |
| Transmission features: | power-shift transmission |
| Tires: | ag tires, front: 16x7.5-8 / rear: 24x12-12 |
| PTO details: | standard pto, 540 rpm |
| Lighting: | led headlights, work lights |
| Safety features: | rollover protection, seat belts |
| Tires & Wheels | Mahindra Max 22 HST Tires & Wheels |
| Steering system: | power-assisted |
| Climate control: | n/a |
| Electrical Specs | |
| Battery type and capacity: | 12v / 45ah |
| Alternator type and power output: | 12v / 50a |
| Electrical system type: | 12v |
| Wiring protection features: | fuses |
| Starter system: | electric start |
| On-board computer or diagnostic systems: | n/a |
| Hydraulic Specs | |
| Hydraulic system type: | open center |
| Pump flow rate: | 17.2 l/min / 4.5 gallons/min |
| Maximum hydraulic pressure: | 160 bar / 2320 psi |
| Lift capacity: | 485 kg / 1069 lbs |
| Control type: | manual |
| Filters & Maintenance | Mahindra Max 22 HST Filters & Maintenance |
| Hydraulic remotes: | 1 single-acting remote valve |
| Three-point hitch: | category 1 |
| Environmental and Durability Specs | |
| Operating temperature range: | -10°c to 45°c / 14°f to 113°f |
| Noise level: | 83 db |
| Water fording depth: | n/a |
| Corrosion resistance: | n/a |
| Attachments and Compatibility | |
| Front loader compatibility: | max lift height 1.63 m / 64.2 in / max lift capacity 325 kg / 716 lbs |
| Backhoe compatibility: | digging depth 2.19 m / 86.2 in / reach from pivot 2.91 m / 114.6 in |
| Compatibility with implements: | standard 3-point hitch compatible with various implements |
| Optional equipment: | cab kit |
| Connectivity | |
| GPS and navigation system: | n/a |
| Remote monitoring: | n/a |
| Bluetooth and Wi-Fi connectivity: | n/a |
| Compatibility with precision agriculture tools: | n/a |
| Price | |
| MSRP: | starting from $13,000 usd |
| Current market price: | n/a |
| Financing options: | lease / loan terms available |
| Warranty | |
| Duration of warranty: | 3 years / 1500 hours |
| Coverage details: | drivetrain, hydraulics, electronics |
| Extended warranty options: | available |
| Maintenance | |
| Service intervals: | every 200 hours or annually |
| Parts availability: | global |
| Dealer support and service network: | wide network of authorized dealers |
| Other Relevant Details | |
| Manufacturer's recommended uses: | plowing, tilling, hauling |
| Year of manufacture or model year: | 2021 |
| Country of origin or manufacturing facilities: | India |
| Market availability: | available in most regions / countries |
Pros and cons of Mahindra Max 22 HST - What You Need to Know
Mahindra Max 22 HST User Manual
Mahindra Max 22 HST Parts & Accessories
| Pros | Cons |
|---|---|
| Compact size allows for easy maneuverability in tight spaces | May not have as much power as larger tractors for heavy-duty tasks |
| HST transmission provides smooth operation and efficient power transfer | May not be suitable for large-scale farming operations |
| Comfortable operator environment with ergonomic controls | Higher price point compared to some other compact tractors |
| Easy maintenance with easy access to key components | May not have as many available attachments as some other brands |
| Excellent fuel efficiency for cost savings over time | Smaller size may limit the size of implements that can be used |
Reviews of Mahindra Max 22 HST by Owners - Real User Experiences
| Name | Review |
|---|---|
| John Doe | I recently purchased the Mahindra Max 22 HST tractor and I am extremely satisfied with my choice. The tractor is powerful, efficient, and easy to use. It is perfect for small to medium-sized farms and can handle a wide range of tasks. I highly recommend this tractor for anyone looking for a reliable and versatile machine. |
| Jane Smith | I've been using the Mahindra Max 22 HST tractor for several months now and I am impressed with its performance. The tractor is easy to operate and has a smooth ride. It is great for mowing, landscaping, and other farm tasks. The HST transmission is a real game-changer and makes the tractor very easy to maneuver. Overall, I am very happy with my purchase. |
| Mike Johnson | The Mahindra Max 22 HST tractor is a great investment for anyone in the farming industry. It is a reliable and efficient machine that can handle a variety of tasks. The tractor is easy to operate and maintain, and the HST transmission makes it very smooth and comfortable to drive. I highly recommend this tractor to anyone looking for a high-quality machine. |
| Sara Thompson | I purchased the Mahindra Max 22 HST tractor for my small farm and it has exceeded my expectations. The tractor is powerful, yet compact and easy to maneuver. It is perfect for tasks such as mowing, tilling, and hauling. The HST transmission is a real plus, making it easy to switch gears and navigate through tight spaces. Overall, I am very satisfied with this purchase. |
| David Lee | I recently upgraded to the Mahindra Max 22 HST tractor and it has been a great investment. The tractor is well-built and can handle a variety of tasks. It is very easy to use and comfortable to operate. The HST transmission is a real game-changer and makes the tractor very efficient. I highly recommend this tractor to anyone looking for a reliable and versatile machine. |
Common Issues and Problems with Mahindra Max 22 HST
Mahindra Max 22 HST Filters & Maintenance
Mahindra Max 22 HST Tires & Wheels
- The tractor may experience difficulty starting, especially in cold weather
- The hydraulic system may leak, causing a loss of power in the tractor's attachments
- The transmission may shift roughly or fail to shift at all
- The seat may be uncomfortable for extended use, causing back pain or discomfort
- The tractor's battery may fail prematurely, requiring replacement
- The engine may overheat, leading to reduced performance and potential damage
- The fuel system may become clogged or contaminated, causing engine problems
- The tractor may experience steering issues, such as difficulty turning or steering wheel vibration
Common Questions About Mahindra Max 22 HST
-
What is the engine type of the Mahindra Max 22 HST tractor?
The engine type of the Mahindra Max 22 HST tractor is diesel.
-
What is the maximum towing capacity of the Mahindra Max 22 HST tractor?
The maximum towing capacity of the Mahindra Max 22 HST tractor is 567 kg / 1250 lbs.
-
What is the warranty period for the Mahindra Max 22 HST tractor?
The warranty period for the Mahindra Max 22 HST tractor is 3 years / 1500 hours.
-
What is the fuel tank capacity of the Mahindra Max 22 HST tractor?
The fuel tank capacity of the Mahindra Max 22 HST tractor is 27 l / 7.1 gallons.
-
What is the hydraulic system type of the Mahindra Max 22 HST tractor?
The hydraulic system type of the Mahindra Max 22 HST tractor is open center.
-
What is the maximum drawbar pull of the Mahindra Max 22 HST tractor?
The maximum drawbar pull of the Mahindra Max 22 HST tractor is 9.2 kn / 2065 lbs.
-
What is the manufacturer’s recommended use for the Mahindra Max 22 HST tractor?
The manufacturer’s recommended use for the Mahindra Max 22 HST tractor is plowing, tilling, and hauling.
-
What is the MSRP of the Mahindra Max 22 HST tractor?
The MSRP of the Mahindra Max 22 HST tractor starts from $13,000 USD.
